Operating units for active sensors
To integrate the active sensors within system controllers additional display and operating instruments are needed. These provide the transmitters with the necessary supply voltage or to locally display the measured values. For such applications Leybold Vacuum offers different instruments. The basic DISPLAY line and the advanced GRAPHIX line are designed each for a broad range of applications.
The DISPLAY vacuum controllers are universal controllers for the connection of active vacuum sensors for direct pressure measurements in the range of 10-9 mbar to 2000 mbar. This covers pressure reading and control for the majority of vacuum processes so is great for multiple applications.
The DISPLAY series active gauge controllers are universal 1 or 3 channel displays and operating units with persistent display of all measurement channels, suited for the active sensors of the THERMOVAC TTR series, linear sensors of the DU series, and PENNINGVAC PTR series.

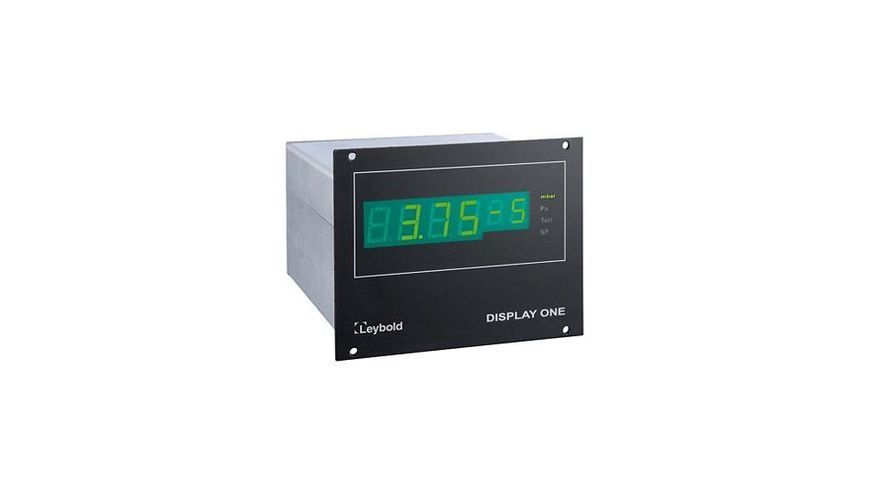

DISPLAY ONE
The DISPLAY ONE is the single channel display unit for the transmitters from the THERMOVAC series, linear sensors of the DU series, and the PENNINGVAC PTR 90 series. The 7 segment display clearly displays the gauge pressure in a compact and cost-effective unit, and the chart recorder output enables you to record the gauge pressures during testing.
