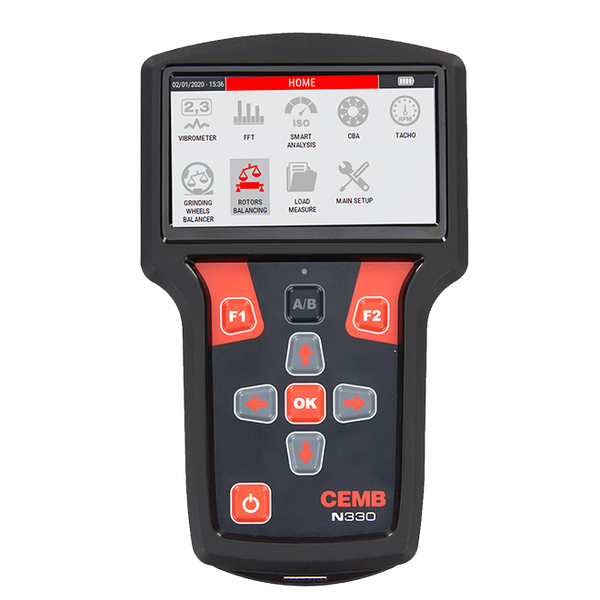

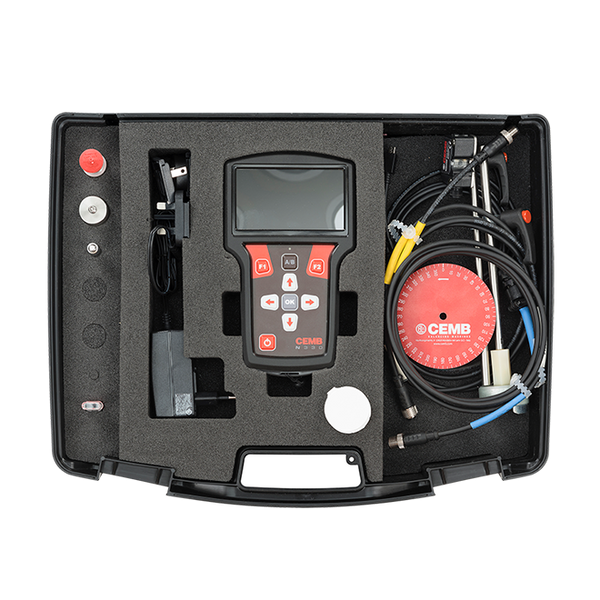

Portable Vibrometer and Balancer with 4,3" graphic display
N330 Vibrometer and balancer with smart functions
The smart solution for any rotating machine
Havy duty instrument, quick&Easy to use
- Easy Balancing Feature
-
-
Rotors Balancing
-
Grinding balancing with 2 or 3 counterweights
-
Angular split
-
Balancing report
GENERAL CHARACTERISTICS Color Display 4,3” TFT LCD (480 x 272 pixel) New EasyClick tactile keyboard with embossed keys MEASUREMENT TYPES Effective value (RMS) Peak value (Pk) Peak-to-peak value (PP) MEASURING PERFORMANCE Bandwidth: 1-10 KHz FFT Resolution: Max 3200 lines Tacho: Up to 250000 rpm UNITS OF MEASUREMENT Acceleration: [g] Velocity: [mm/s] or [inch/s] Displacement: [μm] or [mils] Frequency: [Hz] or [Cpm] INPUT 1 measuring channels IEPE sensor, accelerometer and velocimeter (with a specify cable pluggable on a BNC for read any dinamic signal max. 5V-PP) 2 channels specify for balancing (2nd channel as optional). 1 photocell channel (velocity and angle reference) 1 MicroUSB 2.0 port for data transfer 1 jack plug for battery charger AMBIENT Temperature: from -20° to +70° C Air humidity: from 0 to 95% without condensate Protection: IP54 POWER SUPPLY Long Life Battery: > 8 hours based on typical use Charging time: 2,5 hours for 80% recharge 4 hours for 100% recharge Rechargeable 3100 mAh Lithium battery Power supply-battery charger for 100-240 V, 50/60 Hz (24 V, 1.5 A) CARRYING CASE DIMENSIONS AND WEIGHT Approx. 440(L) x 360 (H) x 115(D) 1800 g -
