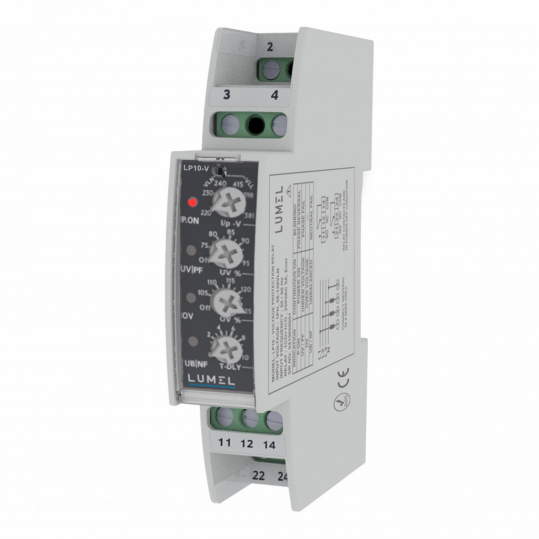

The LP10-V monitors the AC voltage of the system / equipment and protects it against overvoltage, undervoltage and phase failure problems. It also indicates faults with LED indicators.
- Compact size: 17.5mm width
- True RMS measurement
- Control of the minimum and maximum voltage values
- Phase sequence and phase failure control
- Load asymmetry control
- Neutral loss check
- LED signaling for errors
- Possibility to set the deactivation of voltage threshold monitoring VLL / VLN voltage
- Power supply with supervised voltage
- Setting of rated voltage, switching threshold and switching delay time
- Compliance with the international safety standard IEC 61010-1-2010
