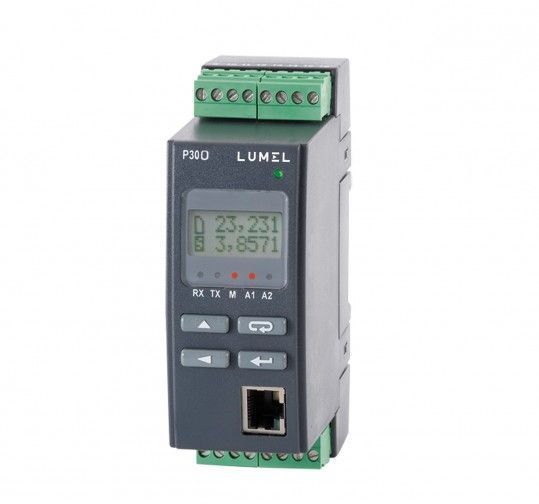

Programmable transducer P30O type is destined to convert of number of pulses, number of working hours, frequency, period and rotational speed into a digital or standard current or voltage signal.
- 2 universal pulse inputs.
- 3 versions:
- with Ethernet and internal memory,
- with SD card,
- standard,
- mathematical functions for each input,
- individual characteristic (up to 21 points) for each input,
- 1 or 2 (optional) alarm output,
- power supply of object transducers 24V d.c. (optional),
- RS-485 interface Modbus RTU Slave, Modbus TCP Slave (optional),
- data recording in:
- internal memory up to 4MB,
- in external SD/SDHC card (optional),
- or internal file system memory (8GB) (optional).
- transducer configuration can be realized with the use of buttons, RS485 interface and eCon software or WWW server,
- firmware upgradeable by the user,
- external dimensions: 45 x 120 x 100mm.
