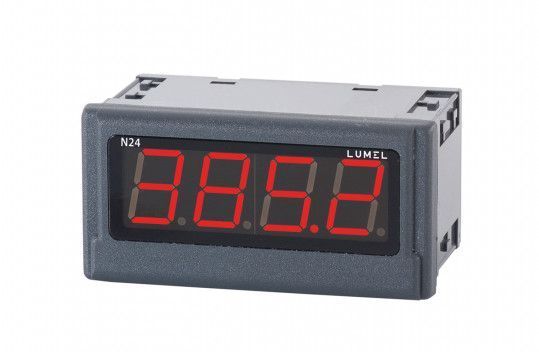

Indicators of N24 series are destined for measurement of dc voltage or dc current, temperature from Pt100 sensors and J, K thermocouples, ac voltage and ac current.
- 4-digit LED display, digits of 20 mm high,
- possible configuration of parameters through the PD14 programmer and the free eCon software
- precision of displayed results (decimal point),
- measurement of averaging time,
- recounting of indications (individual characteristic),
- automatic or manual compensation: temperature of cold junction for measurements with thermocouples or wire resistance for Pt100 sensors (N24T),
- supply: 85… 253 V ac / dc or 20… 24 V ac / dc, 110 V ac, 230 V ac
- protection grade: IP65
- overall dimensions: 96 x 48 x 64 mm
