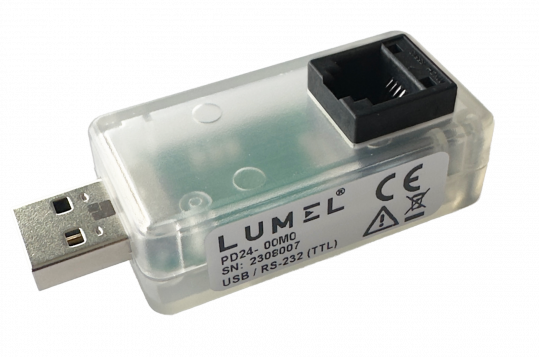

PD24 converter is destined for the conversion of USB interface into RS-232 (TTL) interface with TTL voltage levels. Moreover it’s the programmer for LUMEL products to configure settings using the free eCon software.
In PD24 converter are used 2 interfaces (USB, RS232) - galvanically isolated.
- USB interface (type A) – destined for the device communication with the computer
- RS-232 interface - destined for the communication with devices from the object side
- compliance with the standard USB 1.1 and USB 2.0
- data transmission rate up to 115,2 kbps
- support virtual serial port (COM)
- device supplied from USB port and from the RS-232 (TTL) side
- set includes 1,5 m data transmission cable with RJ12 plugs to configure LUMEL products
- external dimension: 62 x 25 x 20mm
