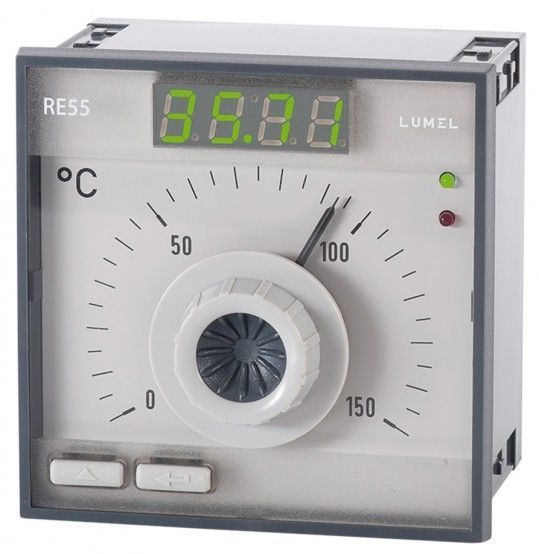

RE55 is controller with an analog setting and digital measurement of the measured value. It controls the temperature in objects through switching on and off the electrical control device, in accordance with the definite set point by the controller.
RE55 co-operates directly with RTD and TC temperature sensors. The controller is destined to control temperature in plastics industry, food and dehydration industries, and everywhere when it is necessary to stabilize temperature changes.
- input: thermocouples: J, K, S, resistance thermometers Pt100
- temperature control range: - 50...1600°C,
- basic error: 1%,
- control algorythm: ON/OFF with histeresis, P, PID, PID with autoadaptive programme,
- output: relay, transistor OC type,
- supply voltage: 85...253 V AC/DC,
-
External dimensions: 96 x 96 x 80mm
