Compact, versatile, clean, with minimal vibration

Tailormade for sensitive applications

• Coating applications: from the production of glass lenses, medical devices to coating aerospace components and solar panels.
• Scientific research: its clean, vibration-free operation makes the TURBOVAC MAG series a popular choice in delicate research processes, for example in mass spectrometers or electron microscopes.
• Industrial applications: reliability and robust performance are critical in maintaining production levels in this sector. The high-level build standard of TURBOVAC MAG pumps, along with the reduced wear-and-tear that these pumps deliver make them ideal for these settings.

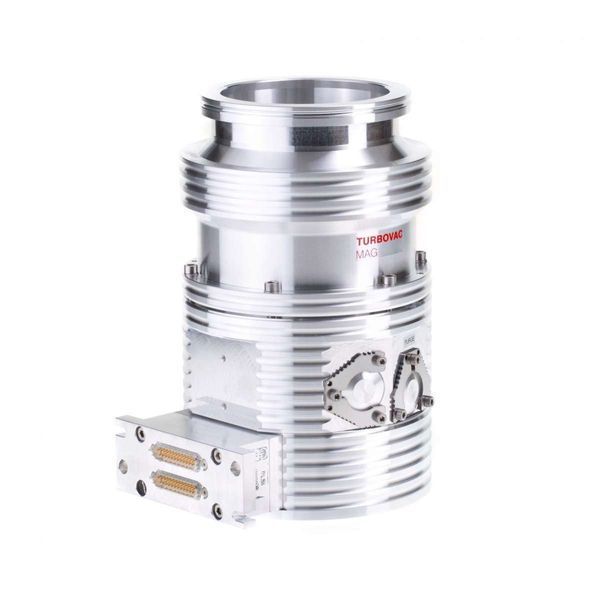

TURBOVAC MAG 2807 iS and 3207 iS

The most compact mag turbo pump in the 3000 l/s pumping class

With TURBOVAC MAG iS pumps the stator and rotor blades are levitated and held in place by electromagnets rather than oil-lubricating bearing systems. This has a number of benefits inlcuding:

• Minimal wear-and-tear reducing maintenance intervals and eleminating the need to replace oil or lubricated bearing cartridges

• Significantly reduced levels of noise and vibration. This makes them ideal for sensitive applications that require a clean, dry, hydrocarbon-free vacuum

• Impressive performance with pumping speeds up to 3,200 l/s

But what makes the TURBOVAC MAG iS range stand out from the crowd is their versatility. Weighing in at under 60 kg they are the lightest and most compact pumps in the 3,000 l/s class, and can be mounted in any orientation. This makes them a perfect choice in environments where space is limited, or flexible deployment is required.

TURBOVAC MAG iNTEGRA

Accuracy, precision and reliability

The TURBOVAC MAG iNTEGRA are magnetically levitated pumps: a strong and compact product line for analytical, environmental, research and challenging industrial coating applications.

• High pumping speed and gas throughput for faster pump down time to improve equipment cycle times.
• 5-axis active magnetic bearing and drive system to combine high reliability with safe and efficient operation.
• Fully integrated converter and power supply: conventional rack-mounted controller and interconnecting cables are no longer necessary.

For safety reasons in case of power loss the drive system switches into a generator mode to keep the rotor suspended by slow deceleration. When power comes back the pump starts to accelerate up to normal speed automatically.

These magnetic turbo pumps are used in the pressure range from 10^-3 mbar (0.75 x 10^-1 Torr) to 10^-13 mbar (0.75 x 10^-10 Torr). Pumping speeds range from 1300 l/s to 2,200 l/s.

The TURBOVAC MAG iNTEGRA pumps are mostly installed in areas that require:

• noise and vibration-free operation,
• to be free of hydrocarbons,
• long maintenance free intervals.
